With a working height of 41 feet and useable both indoors and outdoors, the 3522 A trailer mounted boom is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design make them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.

No items found.

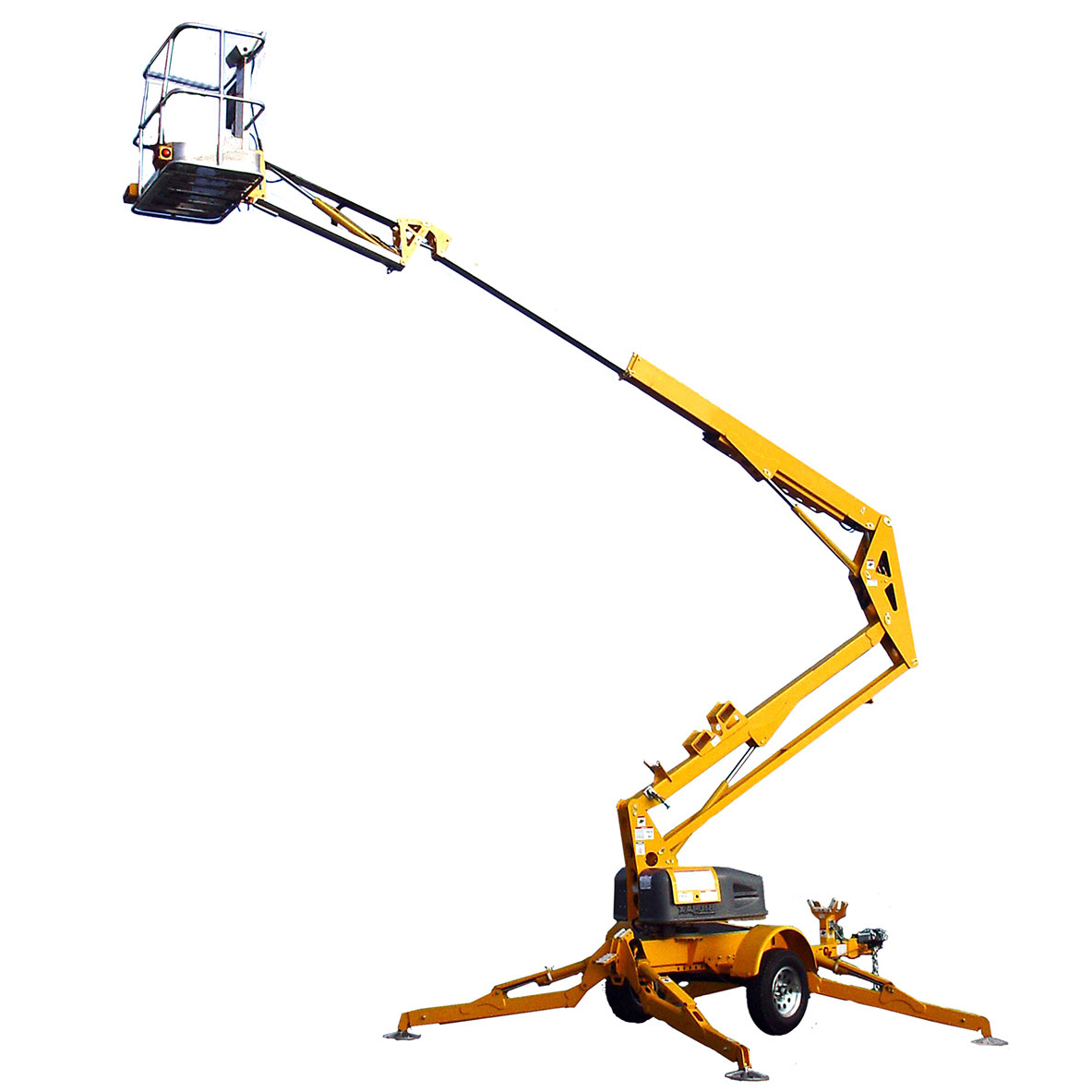

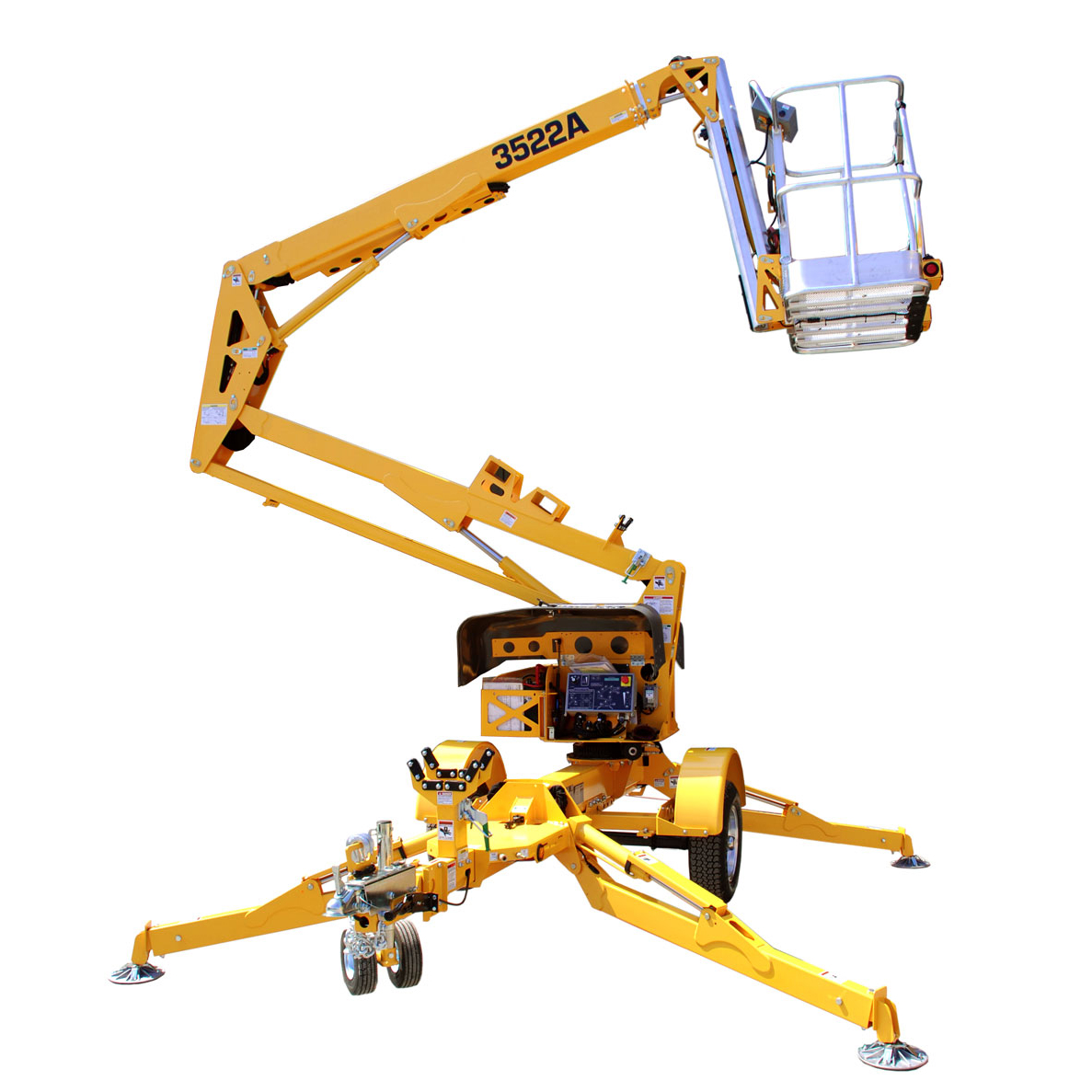

The 3522 A by Haulotte is an electric towable articulating boom lift designed for flexibility and ease of use in both indoor and outdoor settings. It's specifically tailored for applications where space is at a premium, offering significant reach without the need for a commercial driver's license to tow it.

Performance:

  • Lift Height: Provides a platform height of 35 feet 9 inches (10.9 meters), with a working height of 41 feet 9 inches (12.7 meters).
  • Horizontal Reach: Extends to 22 feet 6 inches (6.86 meters), allowing for work over obstacles or in tight spaces.
  • Up and Over: Achieves an up-and-over clearance of 19 feet (5.8 meters), useful for navigating around fixed objects.

Power and Efficiency:

  • Powered by a 48V DC battery system, ensuring silent operation and zero emissions, ideal for noise-sensitive or environmentally regulated areas. The battery system supports extended work sessions with the availability of multiple charging options.

Capacity and Platform:

  • Has a load capacity of 500 pounds (227 kg), which is sufficient for one or two workers plus tools. The platform size is approximately 4 feet 1 inch by 2 feet 9 inches, providing a functional work area.

Terrainability:

  • While designed for towing, once on-site, it features hydraulic outriggers for stability on uneven ground. It's not meant for rough terrain operation but can handle slight irregularities with its automatic leveling system.

Additional Features:

  • Automatic Leveling: Outriggers set up in less than 30 seconds, ensuring quick setup and stability for work.
  • Non-Continuous Turntable Rotation: Up to 350 degrees, offering extensive reach around the base without the need for repositioning.
  • Ease of Towing: Can be towed by a standard half-ton pickup truck, no CDL required, enhancing its site mobility.

Operational Benefits:

  • The 3522 A is ideal for tasks in confined spaces, residential areas, or inside buildings where noise and emissions are concerns. Its electric power source means it can operate indoors without polluting, and its towable nature allows for easy transport between job sites.

Dimensions and Transport:

  • When stowed, it's approximately 16 feet 3 inches (4.95 meters) in length, 5 feet 6 inches (1.68 meters) in width, and 6 feet 8 inches (2.03 meters) in height, making it compact for transportation and storage, especially considering its capabilities.
