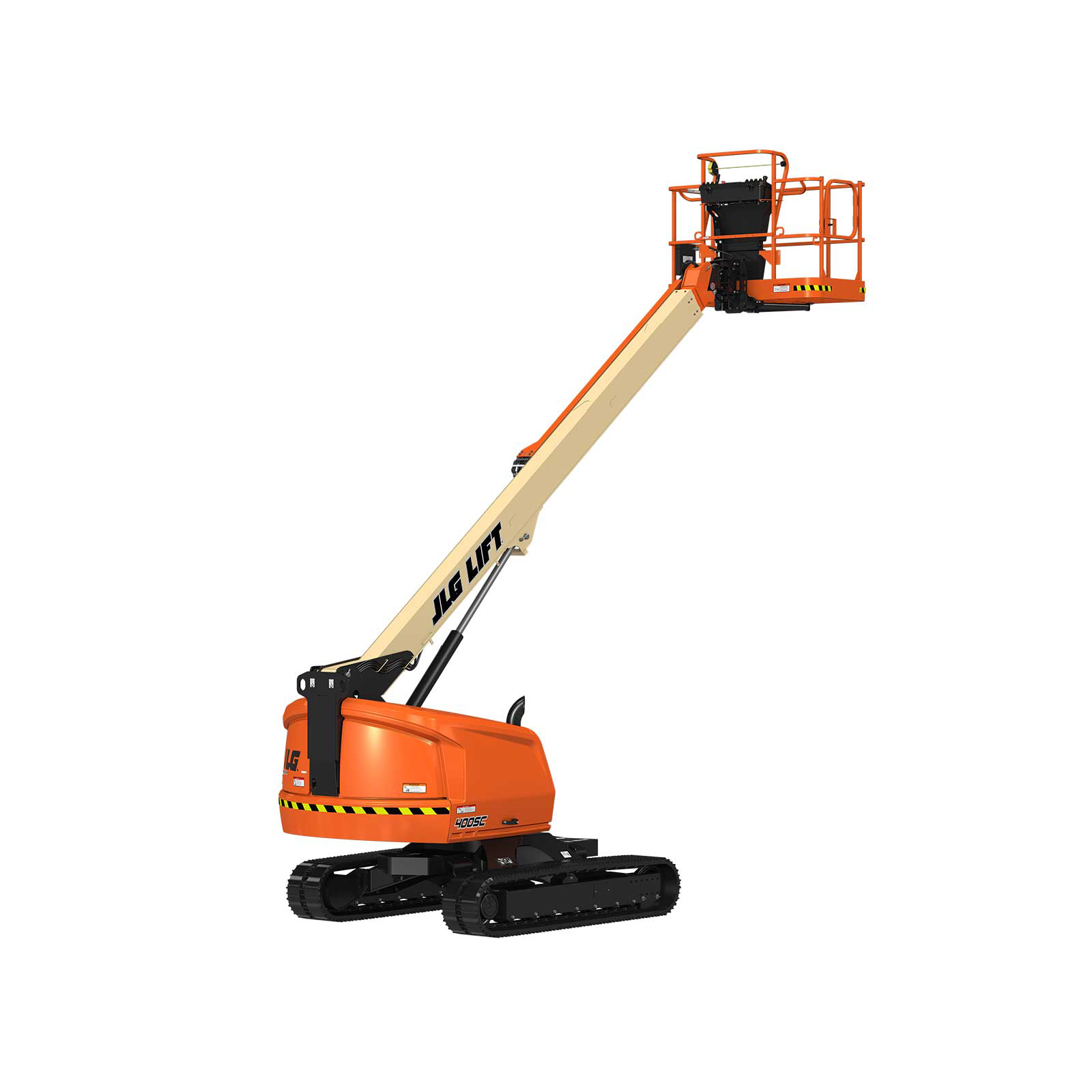

The 400SC by JLG is an engine-powered telescopic boom lift with a unique track system, designed for challenging terrains and environments where traditional wheeled lifts might struggle. This model is tailored for construction, maintenance, or industrial applications requiring robust access to heights over rough ground, offering both reach and stability.
Performance:
- Lift Height: Provides a platform height of 40 feet (12.19 meters), giving a working height of 46 feet (14.02 meters).
- Horizontal Reach: Extends to 33 feet 3 inches (10.13 meters), allowing work over obstacles or in areas with limited access.
- Up and Over: Not primarily focused on up-and-over, but its telescopic nature allows some flexibility in positioning.
Power and Efficiency:
- Powered by a Deutz D2.9 L4 diesel engine, compliant with Tier 4 Final emissions standards, delivering 49 hp. This engine supports variable speed control for improved fuel efficiency. The fuel tank capacity is approximately 22 gallons (83.28 liters).
Capacity and Platform:
- The platform capacity is 600 pounds (272.16 kg) unrestricted and can increase to 1,000 pounds (453.59 kg) in restricted mode, allowing for more tools or materials. The platform dimensions are around 5 feet by 2 feet 6 inches.
Terrainability:
- The track system provides superior traction and flotation, with a ground pressure of about 5.2 psi, making it suitable for soft or sensitive surfaces like concrete or grass. It's capable of navigating through conditions where traditional booms cannot, including snow or mud.
Additional Features:
- DuraTough Hood: For durability and less maintenance due to the impact-resistant material.
- Variable Speed Engine Control: Enhances fuel efficiency, reducing operating costs.
- 360-Degree Continuous Rotation: For comprehensive reach around the base without repositioning.
- Improved Multifunction Capability: Increases productivity by allowing simultaneous operations.
Operational Benefits:
- The 400SC is designed for productivity in harsh environments with its high capacity, extensive reach, and the ability to work on various terrains without damaging the ground. Its track system ensures stability and mobility on challenging sites.
Dimensions and Transport:
- When stowed, it measures approximately 24 feet 10 inches (7.57 meters) in length, 7 feet 6 inches (2.29 meters) in width, and 8 feet 1 inch (2.47 meters) in height, which requires consideration for transport due to its size but is justified by its terrain capabilities.
