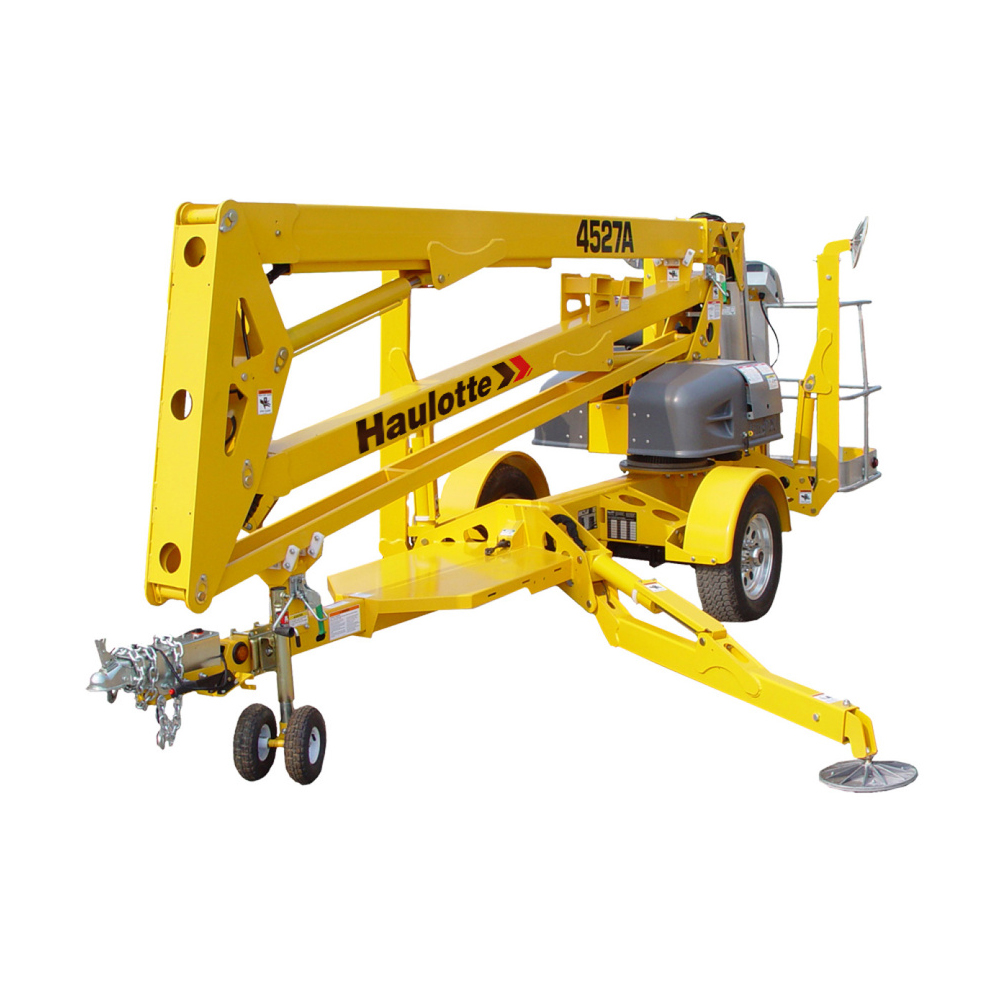

The 4527 A by Haulotte is an electric, towable articulating boom lift designed for versatility in both indoor and outdoor environments. It's particularly suited for applications where high reach, maneuverability, and environmental considerations are paramount, with the added benefit of being towable without needing a commercial driver's license.

Performance:

  • Lift Height: Achieves a platform height of 45 feet (13.72 meters), providing a working height of 51 feet (15.54 meters).
  • Horizontal Reach: Extends up to 27 feet (8.23 meters), ideal for accessing areas over obstacles or in tight spaces.
  • Up and Over: Offers an up-and-over clearance of 20 feet 9 inches (6.32 meters), enabling work around architectural features or machinery.

Power and Efficiency:

  • Operated by a 48V DC electric system, it ensures quiet operation with zero emissions, making it suitable for indoor use or environmentally sensitive areas. The battery system supports long operational hours, with options for standard or accelerated charging.

Capacity and Platform:

  • Can handle a load capacity of 500 pounds (227 kg), enough for one or two workers plus their tools. The platform dimensions are approximately 4 feet 1 inch by 2 feet 9 inches, offering a practical workspace.

Terrainability:

  • While primarily designed for towing to the job site, once in place, it features hydraulic outriggers that set up in under 30 seconds for stability on uneven ground. It's not built for rough terrain but can manage minor irregularities with its leveling system.

Additional Features:

  • Automatic Leveling: Enhances setup speed, ensuring safety and stability quickly upon arrival at the work location.
  • 355-Degree Turntable Rotation: Allows for extensive reach around the base without frequent repositioning.
  • Towability: Can be towed by a standard half-ton pickup truck, making it highly portable and easy to move between sites.

Operational Benefits:

  • The 4527 A is perfect for tasks in residential settings, commercial buildings, or any area where noise and emissions are a concern. Its electric nature supports indoor use, and the towable design increases its versatility for various job site scenarios.

Dimensions and Transport:

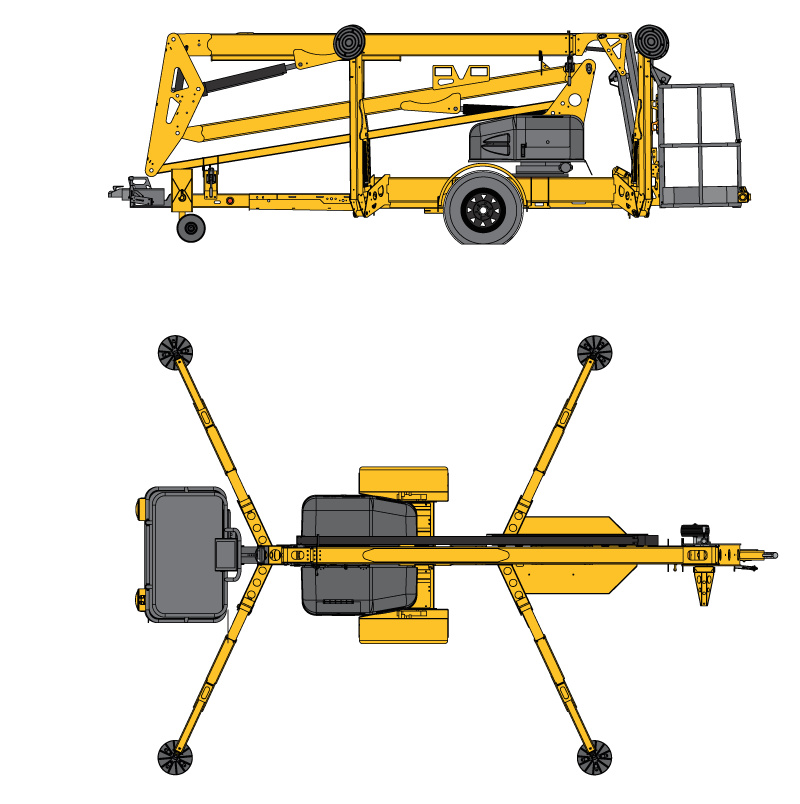

  • In its stowed position, it measures around 20 feet 8 inches (6.3 meters) long, 5 feet 6 inches (1.68 meters) wide, and 6 feet 8 inches (2.03 meters) high, which is manageable for transport considering its capabilities, but still requires some planning due to its length.
