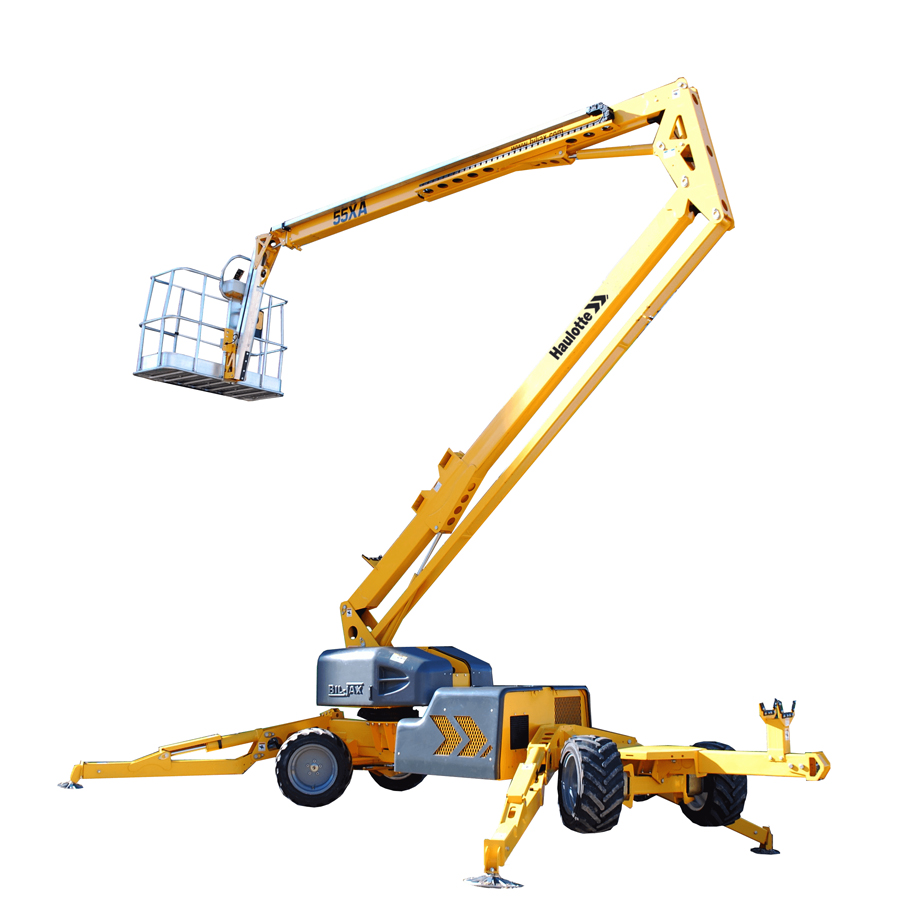

The 55 XA by Haulotte is an electric articulating boom lift designed to provide high reach and flexibility for both indoor and outdoor applications. It's particularly suited for scenarios where environmental considerations, such as noise reduction and zero emissions, are prioritized, alongside the need for precise positioning in confined or complex spaces.
Performance:
- Lift Height: Offers a platform height of 55 feet (16.76 meters), providing a working height of 61 feet (18.59 meters).
- Horizontal Reach: Extends to 33 feet 5 inches (10.18 meters), allowing access to areas far from the base or over obstacles.
- Up and Over: Provides an up-and-over clearance of 23 feet 1 inch (7.04 meters), making it adept at working around architectural features or machinery.
Power and Efficiency:
- Powered by a 48V DC electric system, ensuring quiet and clean operation. This setup supports extended use, with options for standard or accelerated charging to accommodate different work schedules.
Capacity and Platform:
- Can handle a load capacity of 500 pounds (227 kg), which is adequate for one or two workers plus tools. The platform dimensions are approximately 5 feet by 2 feet 6 inches, providing a practical workspace.
Terrainability:
- While primarily designed for towing to the job site, once positioned, it features hydraulic outriggers for stability on uneven ground. It's not built for rough terrain but can manage minor irregularities with its leveling system.
Additional Features:
- Hydraulic Outriggers: Automatic leveling in less than 30 seconds for rapid setup.
- 355-Degree Turntable Rotation: Near-complete rotation to access work areas around the base without repositioning.
- Towability: Easy to tow with a standard half-ton pickup truck, no commercial driver's license needed, increasing its mobility.
Operational Benefits:
- The 55 XA is perfect for applications in urban areas, residential buildings, or any environment where noise and emissions are concerns. Its electric operation allows it to work indoors or in environmentally sensitive areas, while its articulating arm provides the versatility needed for complex job sites.
Dimensions and Transport:
- When stowed, it measures approximately 21 feet 2 inches (6.45 meters) in length, 5 feet 8 inches (1.73 meters) in width, and 6 feet 9 inches (2.06 meters) in height, which makes it somewhat larger for towing but still manageable considering its capabilities and reach.
