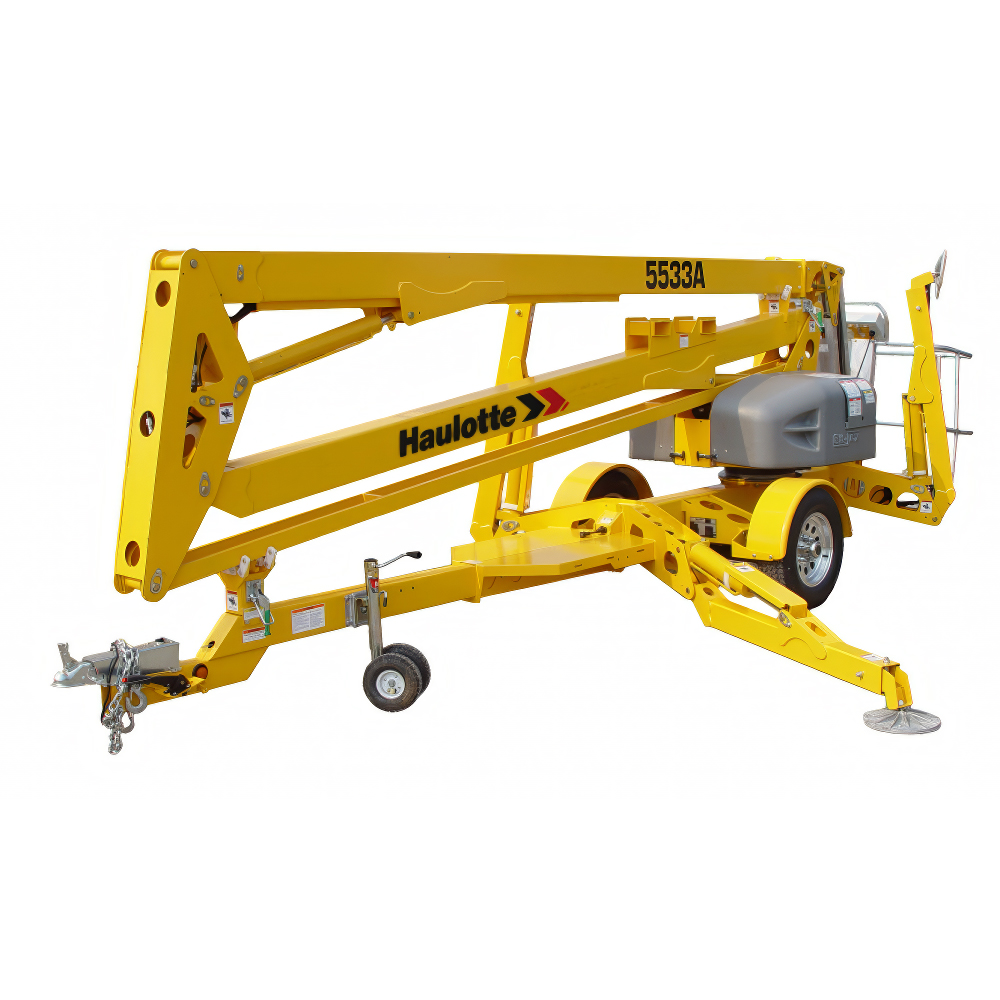

5533 A Haulotte Electric Towable Boom Lift

The 5533 A by Haulotte is an electric, towable articulating boom lift engineered for applications requiring significant height and reach in confined or environmentally sensitive areas. It's designed to be easily towed, offering an impressive combination of reach, capacity, and environmental friendliness for both indoor and outdoor use.

‍

Performance:

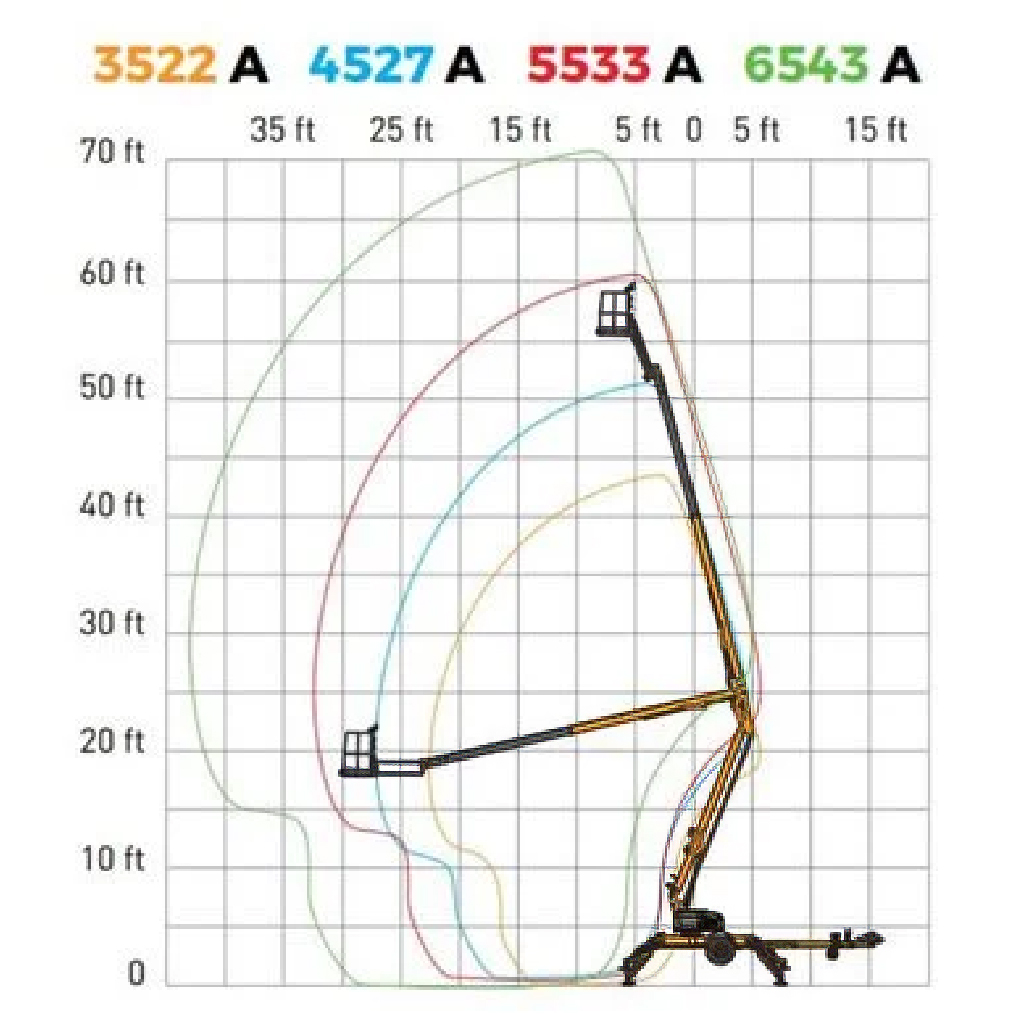

• Lift Height: Reaches a platform height of 55 feet 3 inches (16.84 meters), providing a working height of 61 feet 3 inches (18.67 meters).
• Horizontal Reach: Extends to 33 feet 5 inches (10.18 meters), allowing for work over obstacles or in areas with limited access.
• Up and Over: Can achieve an up-and-over clearance of 23 feet 9 inches (7.24 meters), making it suitable for working around architectural features or equipment.

Power and Efficiency:

• Operates on a 48V DC electric system, ensuring quiet, zero-emission performance. Its battery setup supports extended operation times, with options for different charging speeds to fit operational needs.

Capacity and Platform:

• Has a load capacity of 500 pounds (227 kg), which is adequate for one or two workers plus tools. The platform dimensions are approximately 4 feet 1 inch by 2 feet 9 inches, providing a functional workspace.

Terrainability:

• Although designed to be towed to the site, once in position, it utilizes hydraulic outriggers for stability, which can be set up in less than 30 seconds. It's not intended for rough terrain but can adapt to slight ground irregularities with its leveling system.

Additional Features:

• Hydraulic Outriggers: Allow for quick and automatic leveling, ensuring a safe working platform on uneven ground.
• Non-Continuous Turntable Rotation: Up to 355 degrees, providing near-complete coverage around the base without needing to reposition.
• Easy Towing: Can be towed by a standard half-ton pickup truck, no commercial driver's license required, enhancing its mobility between job sites.

Operational Benefits:

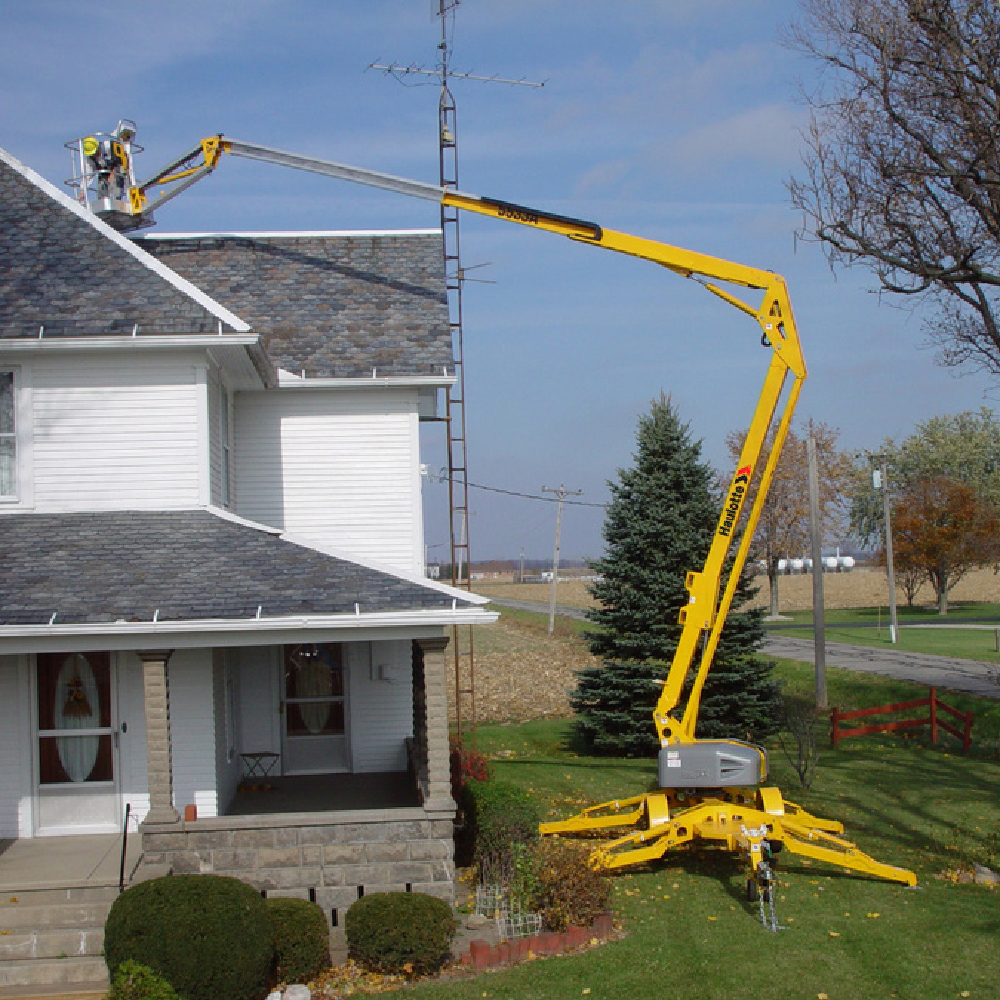

• The 5533 A is ideal for use in urban areas, residential construction, or any location where noise and pollution are concerns. Its electric operation means it can work indoors or in areas with strict environmental regulations, while its towable nature makes it a versatile choice for multiple applications.

Dimensions and Transport:

• When stowed, the dimensions are roughly 22 feet 11 inches (6.98 meters) in length, 5 feet 7 inches (1.7 meters) in width, and 6 feet 6 inches (1.98 meters) in height, which makes it somewhat larger for towing but still manageable given its capabilities and reach.
