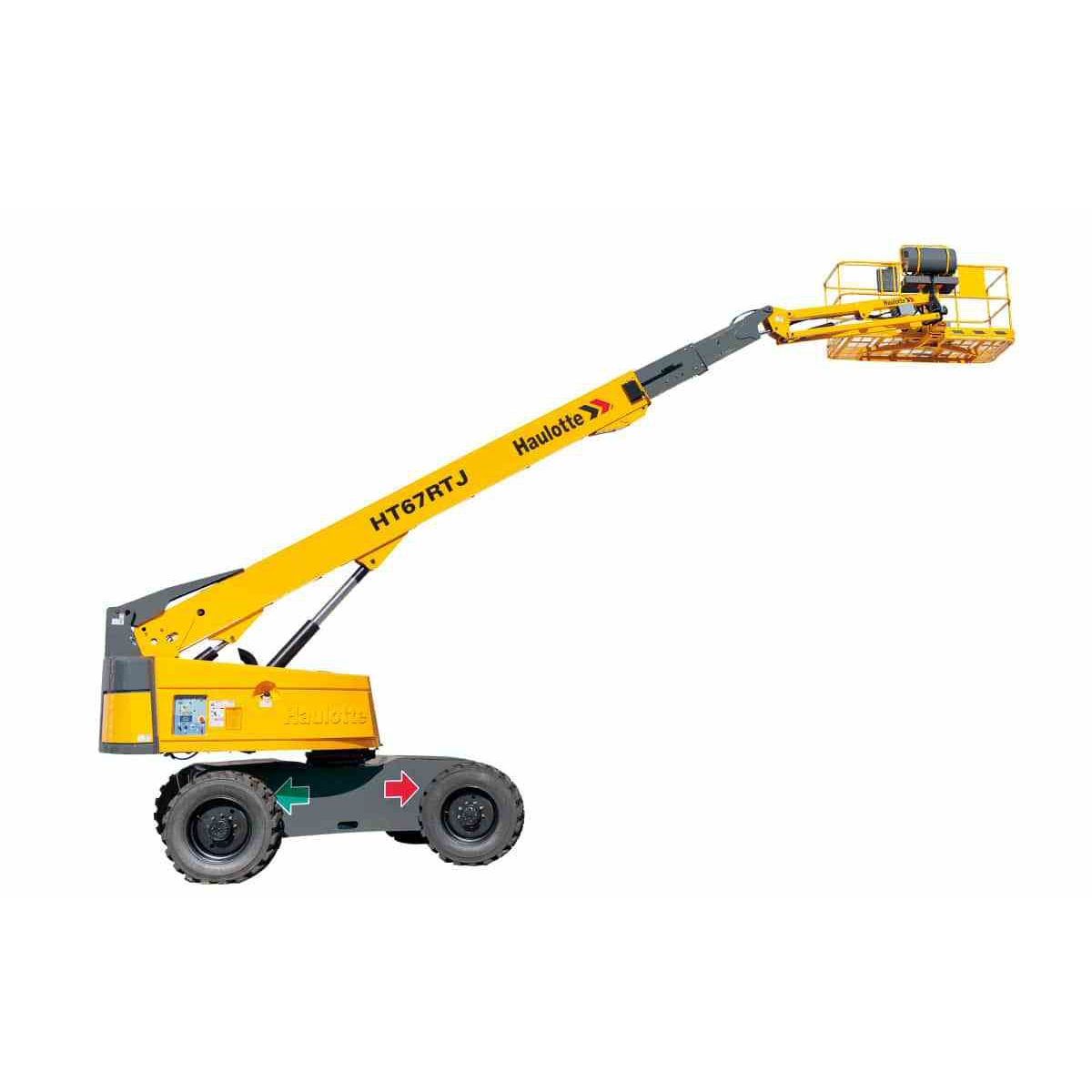

The HT67 RTJ O by Haulotte is an engine-powered telescopic boom lift designed for versatility in construction, maintenance, and industrial applications where significant height and outreach are necessary. It's built for tasks requiring access to elevated areas with precision, offering both reach and stability.
Performance:
- Lift Height: Provides a platform height of 67 feet 5 inches (20.55 meters), giving a working height of 73 feet 5 inches (22.38 meters).
- Horizontal Reach: Extends to 60 feet 5 inches (18.42 meters), allowing for extensive work area coverage.
- Up and Over: While primarily a telescopic boom, it does offer some up-and-over capabilities, though this isn't the primary focus.
Power and Efficiency:
- Powered by a 49 hp Kubota D1105-E4B diesel engine, compliant with Tier 4 Final emissions standards, ensuring performance with environmental consideration. The fuel tank capacity is around 16 gallons (60 liters).
Capacity and Platform:
- Has a platform capacity of 550 pounds (250 kg), with potential for dual load zones to increase capacity under certain conditions. The platform dimensions are approximately 8 feet by 3 feet, offering a substantial work area.
Terrainability:
- Equipped with 4-wheel drive and an oscillating axle for superior terrain adaptability, with a gradeability of up to 45%, making it adept for navigating challenging outdoor sites.
Additional Features:
- Haulotte Activ’Shield Bar: Enhances operator safety by stopping the machine if someone is at risk of being crushed.
- Haulotte Activ'Lighting System: Improves visibility for safer operations in low-light conditions.
- Haulotte Stop Emission System: Automatically turns off the engine when idle to save fuel and reduce emissions.
- Haulotte Activ'Screen: An on-board diagnostic tool for easy maintenance and troubleshooting.
Operational Benefits:
- The HT67 RTJ O is crafted for high productivity, offering a balance of height and reach that minimizes the need for frequent repositioning. Its telescopic boom combined with a jib ensures precise positioning at height, making it versatile for complex job sites.
Dimensions and Transport:
- When stowed, it measures roughly 34 feet 3 inches (10.44 meters) in length, 8 feet 1 inch (2.46 meters) in width, and 8 feet 11 inches (2.72 meters) in height, which requires careful planning for transportation but is justified by its capabilities in terms of reach and height.
