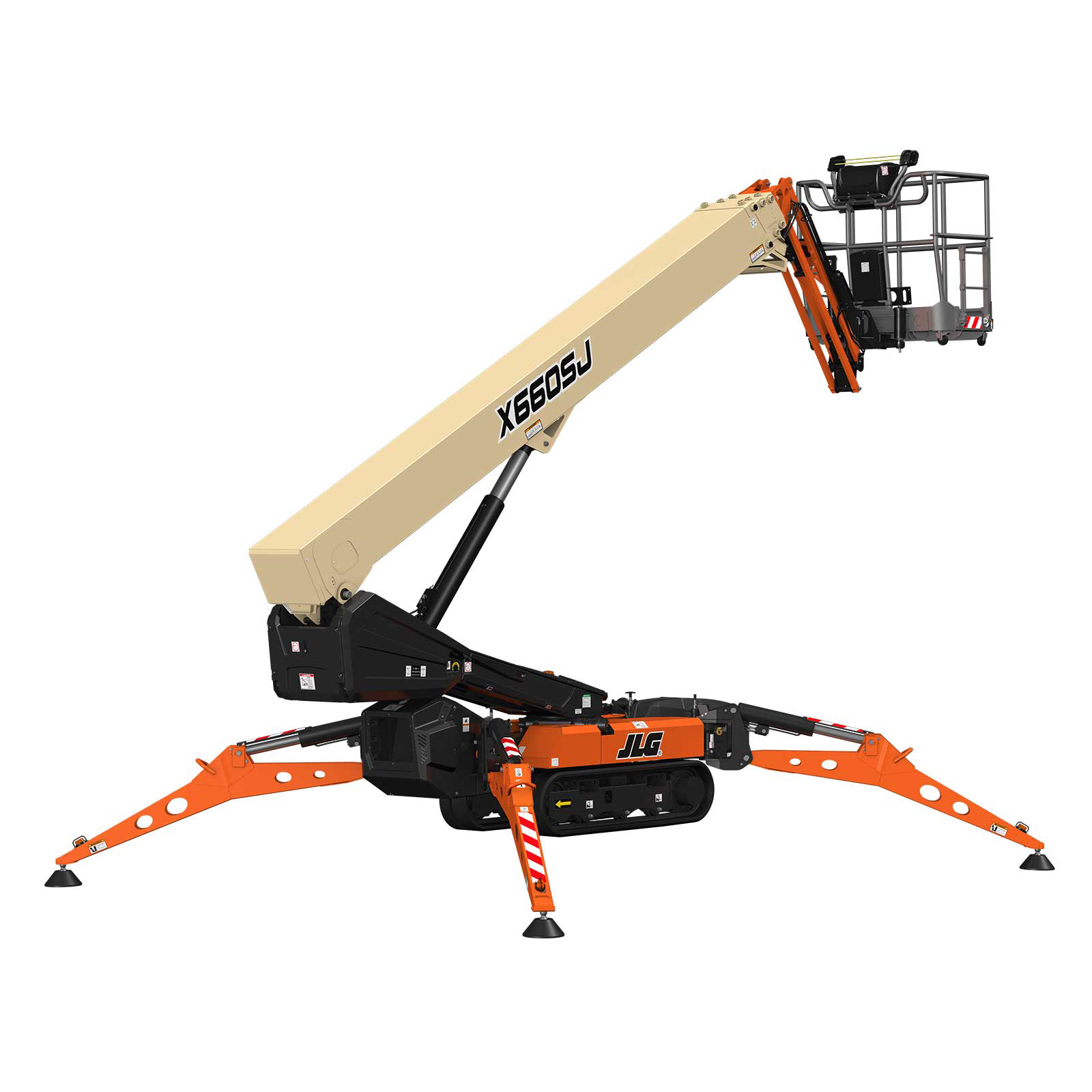

The X660SJ by JLG is a unique compact crawler boom lift offering both electric and hybrid power options, designed for applications where significant reach, precision, and environmental considerations are essential. This model is particularly suited for construction, maintenance, or any task requiring access to high elevations in confined spaces or environmentally sensitive areas.

Performance:

  • Lift Height: Provides a platform height of 65 feet 7 inches (19.99 meters), offering a working height of 71 feet 7 inches (21.82 meters).
  • Horizontal Reach: Extends to 39 feet (11.89 meters), allowing for work over obstacles or in tight spaces.
  • Up and Over: Has an up-and-over clearance of 26 feet 7 inches (8.1 meters), making it adept at navigating around building features or machinery.

Power and Efficiency:

  • Electric Option: Powered by a Lithium-Ion 2.0 battery system for silent, zero-emission operation, suitable for indoor or environmentally sensitive areas.
  • Hybrid Option: Combines the electric system with a small gasoline engine for extended operation when needed, offering flexibility in power usage.

Capacity and Platform:

  • Features a platform capacity of 500 pounds (227 kg), which is sufficient for one or two workers with tools. The platform dimensions are approximately 3 feet by 2 feet 6 inches.

Terrainability:

  • The crawler tracks provide excellent traction and stability on various terrains, including rough, soft, or uneven ground. It can handle slopes with a 40% gradeability, making it versatile for both indoor and outdoor applications.

Additional Features:

  • Non-Marking Tracks: Optional for indoor use to protect sensitive flooring.
  • 360-Degree Non-Continuous Turntable Rotation: For extensive reach around the base without frequent repositioning.
  • One-Touch Outrigger Leveling: Enhances setup speed and stability for work.
  • Compact Design: Despite its capabilities, it's designed to fit through double doorways, increasing its mobility on job sites.

Operational Benefits:

  • The X660SJ's dual power options allow it to operate in environmentally sensitive areas without emissions or noise, while also providing the capability for extended outdoor tasks. Its compact size and crawler tracks ensure high maneuverability and stability, reducing the need for extensive site preparation.

Dimensions and Transport:

  • When stowed, it measures roughly 22 feet 3 inches (6.78 meters) in length, 2 feet 9 inches (0.84 meters) in width, and 7 feet 6 inches (2.29 meters) in height, making it relatively compact for its capabilities, facilitating transport and use in confined spaces.

Client

Model

X660SJ

Brand

JLG
